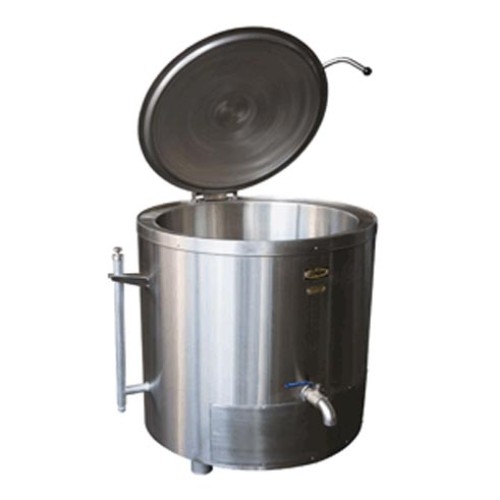

Oil Jacketed Boiling Pot - 225Lt - Electric (Oil Sold Sep)

• Inner Pan – 1,6mm Grade 304 Stainless Steel with integral top rim

• Oil Jacket – 2mm Mild Steel with filler tube, breather pipe and drain cock

• Outer Casing – 0,9mm Stainless steel with 38mm thick insulation

• Lid – 0,9mm Grade 304 Stainless Steel contruction, balanced lid with heat insulated handle

• Draw Off – 32mm nominal bore outlet controlled by valve with heat insulated handle

• Sheathed immersion elements in oil jacket pocket for easy replacement and extended oil life (Also available with Direct Immersion Elements on request)

• Thermostatically controlled with over riding safety thermostat

Specifications:

Dimensions: Ø890 x 1100mm H

Pan Capacity: 225 litres

Oil Jacket Capacity: Approx. 50 litres

Electrical Load: 18 kW – 400 Volt, 3Phase Neutral and Earth

Weight: 145 kg
