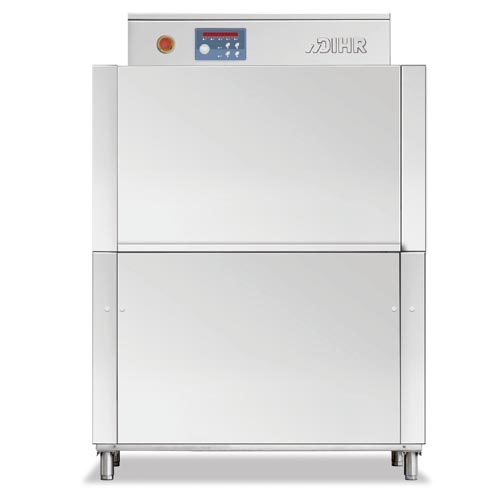

Dish Washer Tunnel Dihr - RX101E

AX161 superseded by model RX101E.

 FEATURES

• Self-cleaning vertical wash pumps, protected from electrical overloads

• Traction system with built-in clutch preventing derailment

• AISI 304 Stainless Steel boilers fully insulated to reduce thermal losses

• Electronic soft touch panel with IP65 security level, manufactured to be user friendly and easy to be cleaned

• Stainless Steel washing and rinsing arms. These are removable without using any tool, for easier cleaning operation or to help the change of working direction on the RX 101E

• Stainless Steel surface filters on every tank, easily removable without detaching washing arms

• Insulated double skin door, counterbalanced, equipped with anti-drop safety system

• Auto timer in order to switch off the rack conveyor motor after a prolonged period of inactivity

• Economizers to allow operation only when the rack is detected on that specific area, avoiding any waste of water and energy

SPECIFICATIONS

DIMENSIONS: 1080 x 715 x 1565/1900mm

TOTAL POWER: 22.33kW

VOLTAGE: 400V 3N~ 50Hz

RACKS PER HOUR: 70/100

WEIGHT: 207kg

OTHER ORDER CODES

1428130  TUNNEL DISHWASHER R101E - DRYER - OPTIONAL EXTRA
